Monitoring and control system
KOMORSAN 2.2

komorsan_22
komorsan_foto
Komorsan_2
Komorsan_1
Description

System of power distribution network diagnostics – KOMORSAN 2.2 - is designed for immediate detection of faults and transmission of fault data to dispatching point and targeted customers. The KOMORSAN 2.2 system improves reliability, productivity and efficiency of distribution network.

Benefits of the new version KOMORSAN 2.2:

Accessory to SCADA system

Improved visualization of fault location

New control functions of overhead electric lines

Enhanced personalization

Extended ACS Engineer mode

Логирование действий персонала

Upgraded cybersecurity

KOMORSAN System collects, analyzes and displays data obtained from the monitoring and control devices, equipped with communication modules, in real time mode, as well as controls breakers and disconnectors of overhead electric lines. Depending on the requirements of a particular power system, various network monitoring and control devices: fault current indicators, disconnectors and breakers, icing temperature sensors, etc may be included in the KOMORSAN 2.2 system.

KOMORSAN 2.2 does not require changes in network infrastructure and uses cloud technologies for collecting and analyzing information. Observing the power grid layout on a topographic map with the location of monitoring devices included in the System materially lighten the work of a power system operator. Neural microservice detects the area of overhead line at which a fault has taken place and type of the fault.

The System has inbuilt cybersecurity facilities and stores user activity information in the electronic logs. To work with the program, the user access basic levels are provided: manager, engineer, administrator. Data exchange with the SCADA system is carried out via IEC 60870-5-104 and IEC 61850 protocols.

The modular design of the KOMORSAN 2.2 system enables customers to tailor the monitoring system meeting their own requirements: to deploy all modules of the KOMORSAN system, or to integrate data collecting and processing server KOMORSAN to existing SCADA. Large number of Lodestar fault indicators, feeder monitors and intelligent disconnectors can be monitored from a single KOMORSAN’s server. All communication links are 100% controlled and any problems are notified in the System immediately.

The system consists of two key components:

1. KOMORSAN 2.2 data collecting and processing server. Lodestar modifications which are equipped with GPRS modules, establish a TCP/ IP connection for data exchange. Cable fault locators can transmit data to KOMORSAN 2.2 server via Modbus or IEC 60870-5-104 protocols.

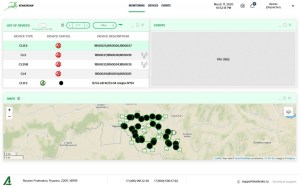

2. The KOMORSAN Web Client software application for monitoring of distribution networks provides access to data collected from diagnostic devices which are equipped with communication modules. This software has geolocation tools that enable a user to control power lines with installed monitoring devices. Based on the network topology and fault information from indicators the KOMORSAN Web Client software visually demonstrates the information, which the operator to easily identify the fault location and its type.

KOMORSAN benefits:

● High level of usability, works with most operation systems;
● Sends fault information directly to maintenance crews via SMS and e-mail (optional);
● Can be integrated with a third-party SCADA system;
● Enables control of the status of installed Lodestar FCIs on a map;
● Easy to implement and easy to manage;
● Fast device setup;
● Simple configuration;
● Cost-effective;
● Immediate and reliable fault localization;
● Web browser-based user-friendly interface;
● Smart analysis and diagnostic tools;
● Remote firmware upgrades;
● Guaranteed technical product support 24/7;
● Secure access;
● Data export;
● Network topology mapping.

SYSTEM REQUIREMENTS
Supported platforms Linux
Database PostgreSQL
Processor Xeon 4C E3-1241v3 (or any similar) х1
Processor type 3.5GHz/1600MHz/8MB
RAM 8Gb DDR3
HDD SAS/SATA, 7.2K 6Gbps NL, 2 х 500Gb
Dual Ethernet YES
MANAGEMENT
User access managment YES
Fault notification alarm, SMS and E-mail
Continuous storage of all information retrospective
FI thresholds and settings remotely adjustable
Data export YES
COMMUNICATIONS
Data exchange with external systems IEC 60870-5-104 protocol
DEVICES
Fault indicators Lodestar CL0.5,Lodestar CL2, Lodestar CL4, Lodestar CL25B, Lodestar CL HVDD, Lodeatsr Cl HV, Lodestar PL10, LodestarPL4, Lightbox, Smartbox
Feeder Monitors and automation system Lodestar FM CS, Lodestar FM, IDD

Catalogue

english language catalogue

Catalogue A3 (english) Catalogue A3 (english) - DOWNLOAD
